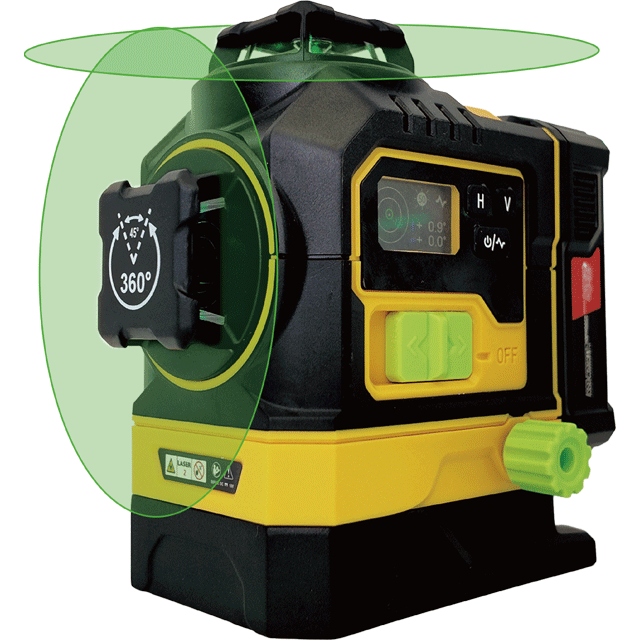

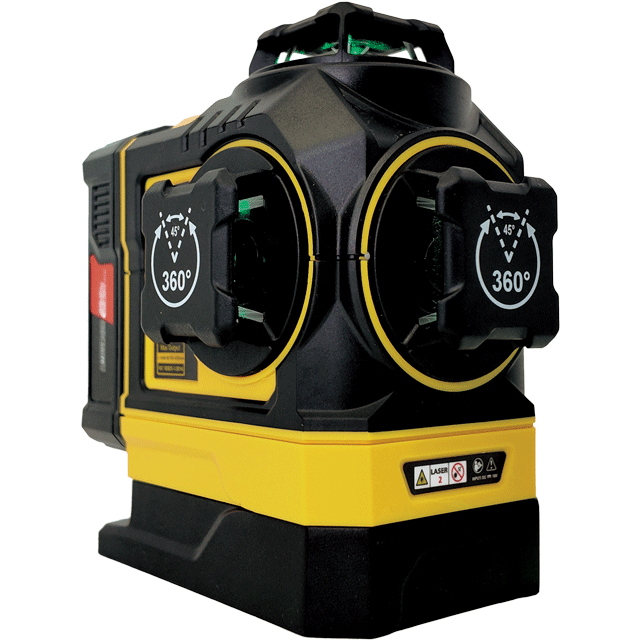

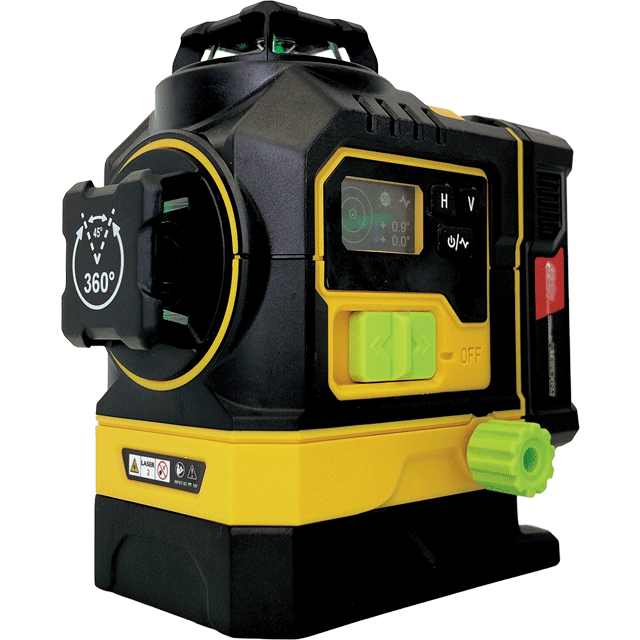

MN-3RG 3×360° Self-Leveling Cross Line Laser Level with LCD Angle Display

The Plineasy MN-3RG 3×360° Self-Leveling Cross Line Laser Level is designed for professional installers who need accurate layout references, controlled laser positioning, and reliable performance on the jobsite.

Featuring a high-precision angle sensor, an LCD that displays laser line tilt, a heavy-duty metal base, and a precision fine-tuning knob, the MN-3RG helps users manage alignment tasks with greater control. Its three 360-degree laser planes provide broad coverage for wall, floor, and ceiling applications, while the DeWALT 12V battery interface offers additional power-supply flexibility.

For European and North American tool brands, importers, and distributors, the MN-3RG combines professional layout functions with practical design features that support product differentiation in the competitive laser measurement market.

Key Features of the MN-3RG 3×360° Laser Level

• Three 360° laser planes: Provide horizontal and vertical reference coverage for walls, floors, and ceilings.

• High-precision angle sensor and LCD display: Shows laser line tilt rather than only the tilt of the device body.

• Precision fine-tuning knob: Helps correct small laser alignment deviations without moving the entire instrument.

• Rotatable base and heavy metal support: Provide stable placement and controlled positioning adjustments.

• Rotatable metal laser window: Supports full-angle laser emission and is designed for long service life.

• DeWALT 12V battery interface: Offers compatibility with supported DeWALT 12V battery packs.

• Four operating modes: Include self-leveling, manual, pulse, and brightness-adjustable power-saving modes.

• IP54-rated design: Provides protection against dust ingress and water splashes under specified conditions.

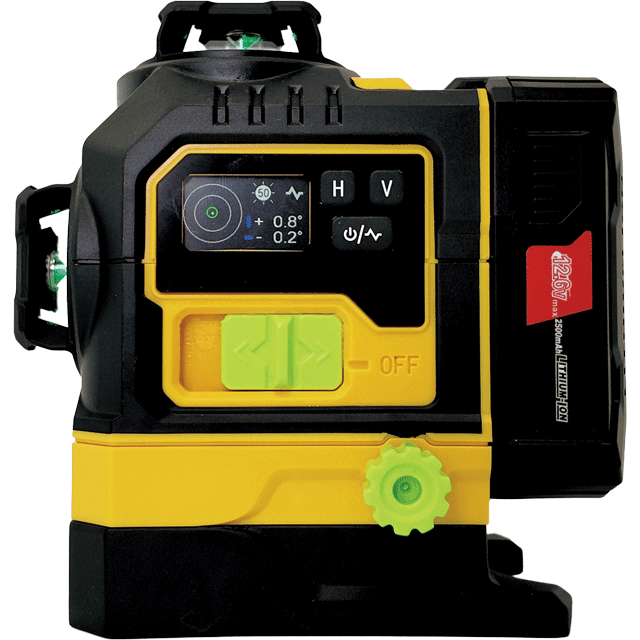

How Does the LCD Angle Display Improve Laser Alignment?

When a laser level is used for angled layout work, knowing the actual laser line tilt is important. If users only have information about the instrument's body position, they may need additional checks to understand how the projected line is oriented.

The MN-3RG uses a high-precision angle sensor to display the laser line tilt on its LCD screen. This gives users a more direct reference when checking line orientation and making adjustments.

For installers working on sloped ceilings, angled structures, and other applications requiring controlled line positioning, this feature can make the adjustment process more intuitive.

For professional tool brands, the LCD angle display is a meaningful product differentiator because it connects a technical feature with a practical user need: understanding the projected line without relying solely on visual estimation.

Three 360° Laser Planes for Wall, Floor and Ceiling Layout

Repeatedly moving a laser level between different positions can slow down construction and make it harder to maintain consistent reference lines.

The MN-3RG projects three 360-degree laser planes, allowing users to establish reference lines across multiple surfaces from a single setup. This configuration is suitable for suspended ceiling installation, flooring layout, cabinet alignment, wall finishing, and interior fit-out work.

With broad coverage, installers can coordinate horizontal and vertical references more efficiently and reduce unnecessary repositioning during routine layout tasks.

The three-plane configuration is particularly useful for contractors who need to transfer reference lines across walls, floors, and ceilings during the same project.

Precision Fine-Tuning Knob for Faster Alignment

Small laser deviations can be frustrating when a tool must be repositioned repeatedly to achieve the required alignment.

The MN-3RG features a precision fine-tuning knob that helps users make small adjustments to the laser direction without moving the entire instrument. Combined with the rotatable base, this design supports controlled positioning and more convenient alignment.

For cabinet installers, ceiling contractors, and interior finishing professionals, fine adjustment can reduce repetitive setup work and help maintain the intended reference position.

The heavy metal base also provides stable support during adjustment, helping users work with greater control.

Heavy Metal Base and Rotatable Metal Laser Window

A stable base and an unobstructed laser projection path are important for consistent layout work.

The MN-3RG features a heavy metal base designed to provide stable support during installation. Its rotatable base allows users to adjust positioning, while the rotatable metal laser window supports full-angle laser emission.

The metal window structure is designed for durability and long service life. It also provides a practical design feature for professional tool brands seeking products that combine functional performance with robust construction.

Together, the base and window design support convenient positioning and dependable operation during routine construction and renovation tasks.

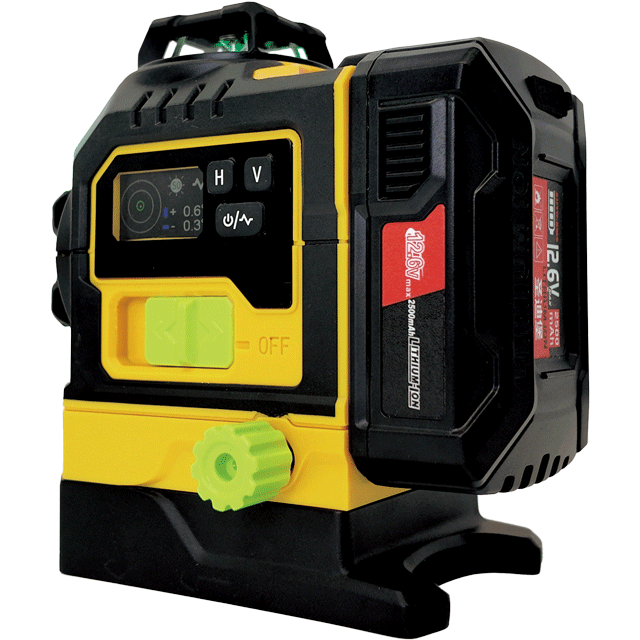

DeWALT 12V Battery Compatibility for Greater Power Flexibility

Managing multiple battery platforms can increase equipment costs and create inconvenience for professional users.

The MN-3RG features a battery interface designed for compatible DeWALT 12V battery packs. For contractors already using supported batteries, this can simplify power management and reduce the need to carry an additional battery system.

Battery compatibility should always be confirmed against the specified supported models. Users should follow the product manual and battery manufacturer's instructions when selecting and charging battery packs.

For distributors and tool brands, a familiar battery platform can be an important purchasing consideration when evaluating laser levels for customers who already own compatible equipment.

Four Operating Modes for Different Jobsite Requirements

The MN-3RG offers four operating modes to support different leveling and layout needs.

Self-leveling mode

The instrument automatically establishes level reference lines when positioned within its specified self-leveling range of 4° ±1°. This helps reduce manual adjustment during routine leveling tasks.

Manual mode

Manual mode allows users to position the laser lines at an intended angle for applications where a level reference is not required, such as selected sloped layouts.

Pulse mode

Pulse mode supports use with a compatible laser receiver. It is useful when receiver-assisted detection is required in bright environments or for applications where the visible laser line alone is insufficient. Actual working distance depends on receiver compatibility and site conditions.

Brightness-adjustable power-saving mode

Adjustable brightness allows users to select a suitable laser output for different working environments. Power-saving functionality helps manage energy consumption when reduced brightness is appropriate.

These four modes allow the MN-3RG to adapt to a range of indoor installation and selected receiver-assisted applications.

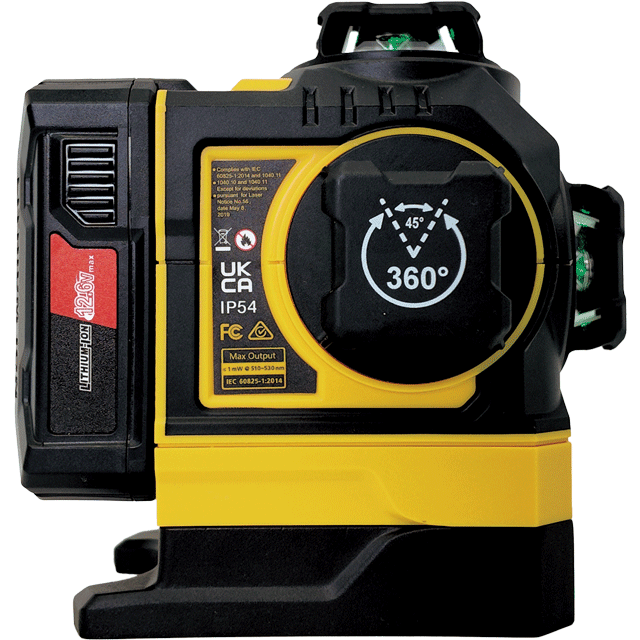

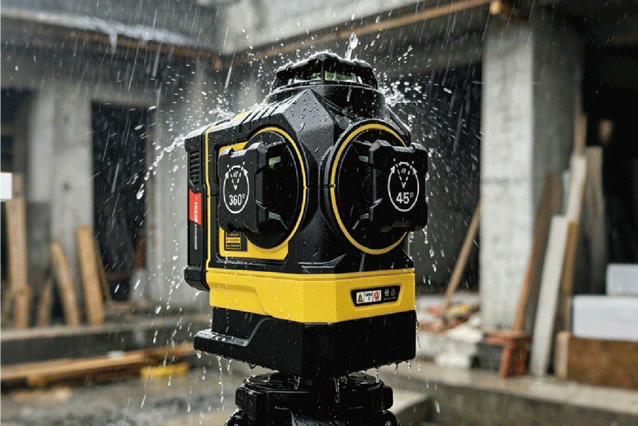

IP54 Protection for Everyday Construction Conditions

Dust and water splashes are common in construction and renovation environments. Equipment designed for professional use needs suitable protection against these everyday conditions.

The MN-3RG features an IP54-rated design to help protect against dust ingress and water splashes under specified test conditions.

Its metal base and metal laser window further support a robust product design for regular jobsite use. However, IP54 does not mean the instrument is waterproof or suitable for immersion, and proper handling remains essential.

For professional buyers, the combination of a protective enclosure and durable structural components is an important factor when evaluating equipment for regular use.

Applications of the MN-3RG 3×360° Laser Level

The MN-3RG is designed for professional layout tasks that benefit from broad laser coverage and precise positioning.

• Suspended ceiling installation: Establish horizontal references and coordinate layout positions.

• Cabinet and shelving installation: Align fixtures and maintain consistent reference heights.

• Flooring and tile layout: Provide reference lines for positioning and alignment.

• Interior renovation: Support layout work across walls, floors, and ceilings.

• Sloped ceiling projects: Use manual mode and the LCD angle display to assist with angled line positioning.

• General construction layout: Fine-tune laser direction without repeatedly relocating the entire tool.

The instrument's suitability for a specific application depends on required accuracy, working distance, mounting conditions, and the operating mode selected.

Why Choose Plineasy for OEM/ODM Laser Level Manufacturing?

For European and North American tool brands, selecting a laser level supplier requires more than comparing individual specifications. Buyers also need to consider product differentiation, manufacturing consistency, customization options, and technical support.

Plineasy specializes in laser levels and related measuring tools, providing OEM/ODM cooperation opportunities for brands developing their own measuring-tool portfolios.

Product differentiation

The MN-3RG combines three 360-degree laser planes, LCD laser line tilt display, precision fine adjustment, a heavy metal base, and a rotatable metal laser window. These features provide concrete selling points for professional product ranges.

OEM/ODM customization support

Brand owners can discuss suitable logo placement, appearance, packaging, and product configuration requirements with the Plineasy team. Available options depend on project scope and technical feasibility.

Manufacturing and quality management

Plineasy can discuss inspection requirements, technical documentation, and applicable market compliance needs during project evaluation.

Product portfolio development

The MN-3RG can complement compact cross-line laser levels and other multi-plane models, helping brands serve professional installers who require more advanced alignment and adjustment functions.

For importers, distributors, and established tool brands, Plineasy offers an opportunity to discuss product specifications, customization, and supply requirements for their target markets.

Frequently Asked Questions

What makes the MN-3RG different from a standard 3×360° laser level?

The MN-3RG combines three 360-degree laser planes with an LCD angle display that shows laser line tilt, a precision fine-tuning knob, a heavy metal base, and a rotatable metal laser window.

What does the LCD angle display show?

The LCD displays laser line tilt rather than only the tilt of the instrument body, helping users understand the projected line orientation during adjustment.

What is the purpose of the fine-tuning knob?

The fine-tuning knob helps users correct small laser alignment deviations without moving the entire unit, making precise positioning more convenient.

Is the MN-3RG compatible with DeWALT 12V batteries?

The product features a DeWALT 12V battery interface. Users should check the specified compatible battery models and follow the product instructions before use.

What is the self-leveling range?

The specified self-leveling range is 4° ±1°. For best results, users should position the instrument within its specified operating range and follow the manual's instructions.

Can the MN-3RG be used outdoors?

Pulse mode supports operation with a compatible laser receiver. Outdoor suitability depends on receiver compatibility, working distance, visibility, and environmental conditions.

Does Plineasy support OEM/ODM orders?

Plineasy supports OEM/ODM cooperation for laser levels and related measuring tools. Brand owners can contact the team to discuss customization, packaging, product requirements, and project feasibility.

Contact Plineasy for OEM/ODM Cooperation

Looking for a professional 3×360° self-leveling laser level with LCD angle display and precision fine adjustment for your product portfolio?

Contact Plineasy to discuss the MN-3RG, technical specifications, customization options, and OEM/ODM supply requirements for your target market.
