LS-4JG
Plineasy
Built-in 3600mAh lithium battery
IP54
8 H/first gear 12H/second gear 16H/third gear
| Quantity: | |
|---|---|
Product Description

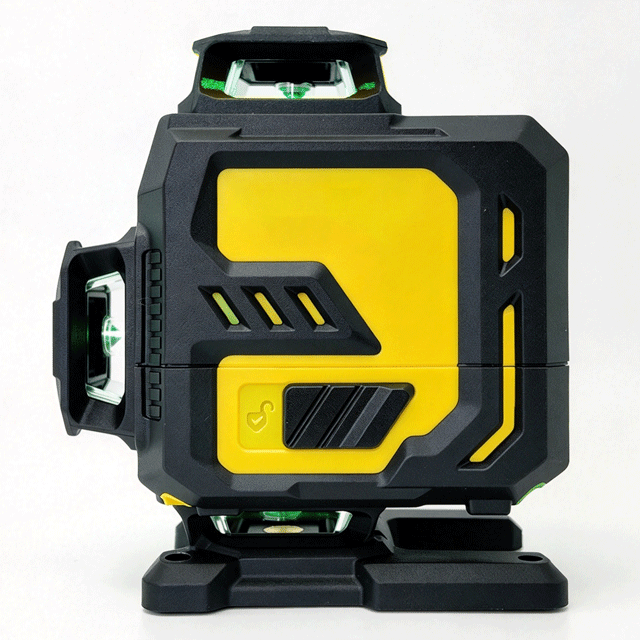

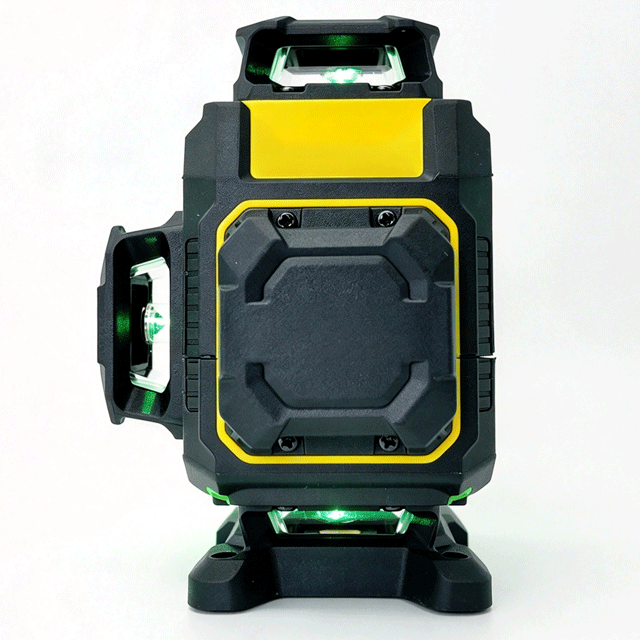

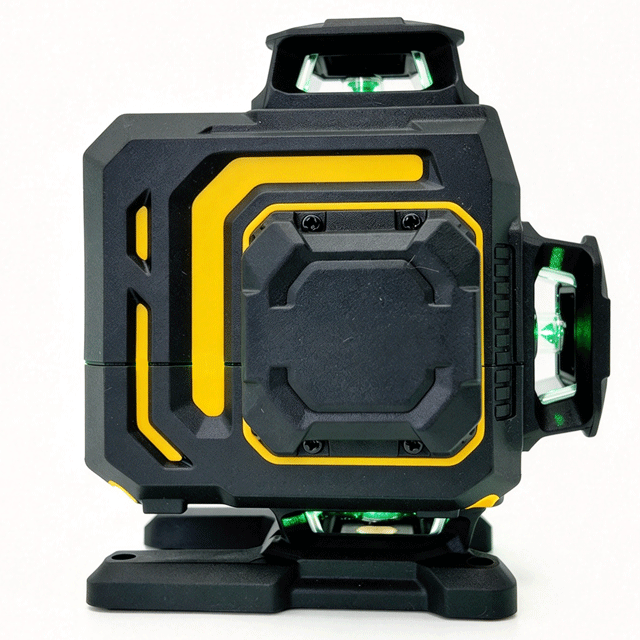

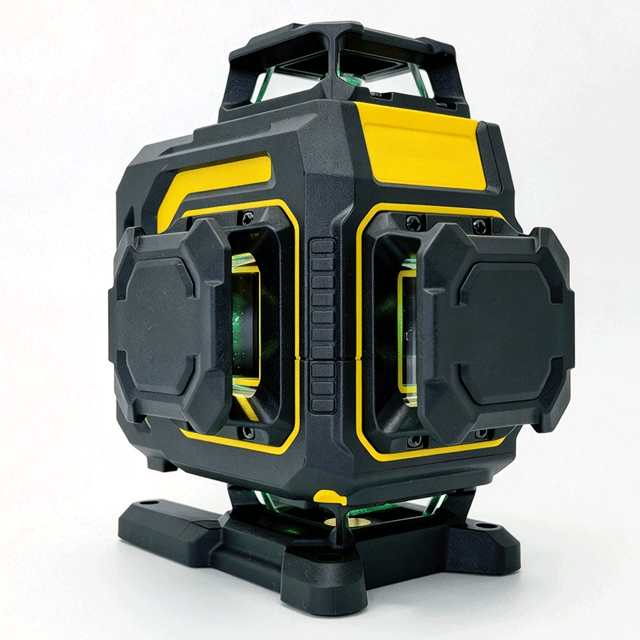

The Plineasy LS-4JG is a compact 4D 16-line green laser level featuring four 360° laser planes for full-room leveling, alignment, squaring and layout work.
With horizontal and vertical 360-degree laser coverage, the LS-4JG provides reference lines across floors, walls and ceilings, making it suitable for professional construction, interior renovation, tiling, ceiling installation, cabinetry, partition installation and other precision layout applications.
The laser level combines ±3 mm/10 m accuracy, self-leveling operation, adjustable laser brightness, a built-in 3600mAh lithium battery and IP54 protection in a compact jobsite-ready design.
For tool brands, distributors and wholesalers, Plineasy also provides OEM and ODM laser level solutions for private-label projects.
Model: LS-4JG
Laser Type: 4D / 16-Line Laser Level
Laser Coverage: 4 × 360°
Laser Color: Green
Accuracy: ±3 mm at 10 m
Working Range: Up to 30 m with green beam
Self-Leveling Range: 3° ±1°
Battery: Built-in 3600mAh lithium battery
Protection Rating: IP54
Mount: 1/4"-20 mounting thread
Request a Quote for LS-4JG

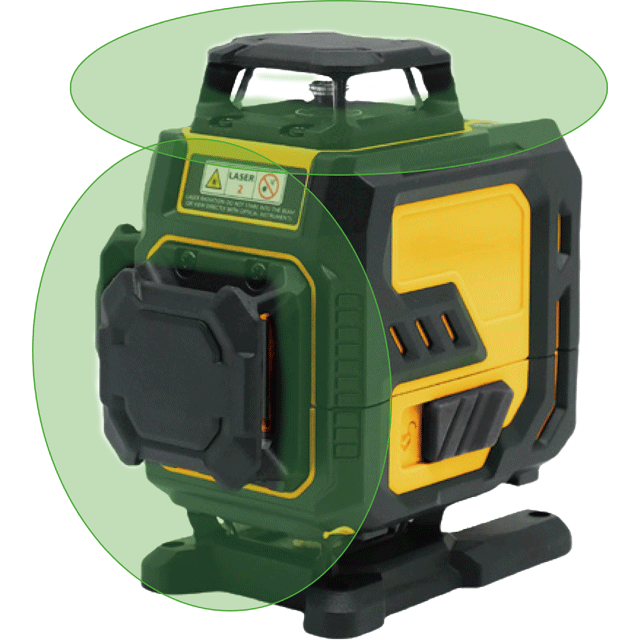

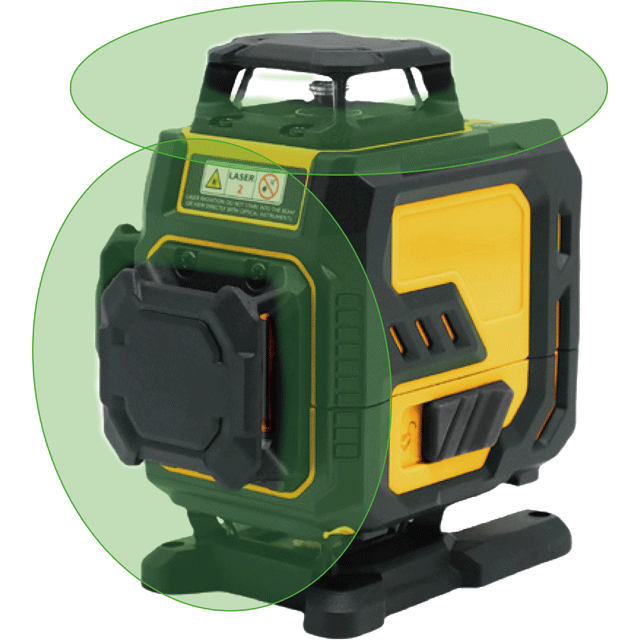

The LS-4JG is a 4×360° laser level, meaning it projects four full-circle laser planes instead of only a conventional horizontal and vertical cross line.
The four-plane design provides laser references around the working area for floor, wall and ceiling layout.
This makes the LS-4JG particularly useful for projects requiring multiple reference points without repeatedly repositioning the laser level.
Typical applications include:
Floor and wall tiling
Suspended ceiling installation
Cabinet and kitchen installation
Partition wall construction
Door and window alignment
Electrical and lighting installation
Interior renovation
Flooring installation
Wall panel installation
Construction layout and alignment
The LS-4JG uses a high-visibility green laser beam designed to provide clear reference lines for indoor construction and renovation applications.
Its green laser wavelength is approximately 505–530 nm, with a working distance of up to approximately 30 meters under suitable conditions.
Compared with basic cross-line laser levels, the four 360° laser planes allow contractors to establish continuous reference lines around a room for faster positioning and alignment.
For larger jobsites or brighter environments, pulse-mode operation can be used with a compatible laser detector where applicable.
Precision is one of the most important factors when selecting a professional laser level.
The LS-4JG provides horizontal and vertical accuracy of approximately:
±3 mm at 10 meters
This makes it suitable for common professional leveling and alignment tasks including tiles, ceilings, cabinets, partitions and interior construction.
Accurate reference lines help installers reduce repeated manual measurements and maintain consistent alignment over larger working areas.
The LS-4JG features a self-leveling system designed to automatically establish level reference lines when the unit is positioned within its leveling range.
Self-leveling range: approximately 3° ±1°.
When the laser is within this range, the internal leveling mechanism automatically adjusts the laser planes.
For applications requiring an angled reference line, the pendulum can be locked and the laser level can be used in manual mode.
Manual mode is useful for applications such as:
Stair installation
Diagonal tile patterns
Sloped ceiling work
Handrail positioning
Decorative wall layouts
This combination of self-leveling and manual operation allows one laser tool to handle both standard level references and angled layout work.
The LS-4JG is powered by a built-in 3600mAh lithium battery.
Different laser brightness settings allow users to balance laser visibility and battery consumption according to the working environment.
Depending on the selected operating mode and laser brightness, runtime can reach approximately:
8 hours
12 hours
Up to 16 hours
Lower brightness can be used for indoor environments where maximum laser intensity is unnecessary, helping extend battery runtime during longer jobs.

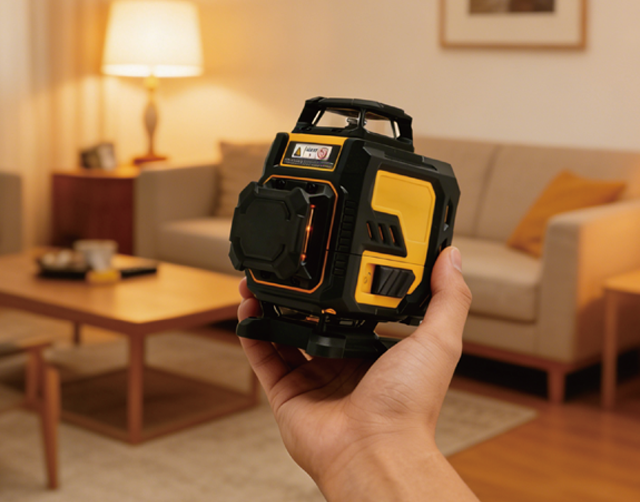

Despite providing four 360° laser planes, the LS-4JG uses a compact housing designed for easy transport and positioning around the jobsite.
The laser can provide reference lines for three major working surfaces:
The lower horizontal laser plane helps establish continuous reference lines for flooring and tile installation.
It can be used for:
Ceramic tile installation
Stone flooring
Vinyl flooring
Hardwood flooring
Floor layout and alignment
The vertical laser planes help create straight and square reference lines across walls.
Common applications include:
Wall tiles
Cabinets
Shelving
Wall panels
Partitions
Doors and windows
The upper horizontal laser plane provides a convenient reference for overhead installation.
Typical applications include:
Suspended ceilings
Lighting fixtures
Ceiling panels
HVAC positioning
Electrical installation
Construction tools are frequently exposed to dust, debris and occasional water splashes.

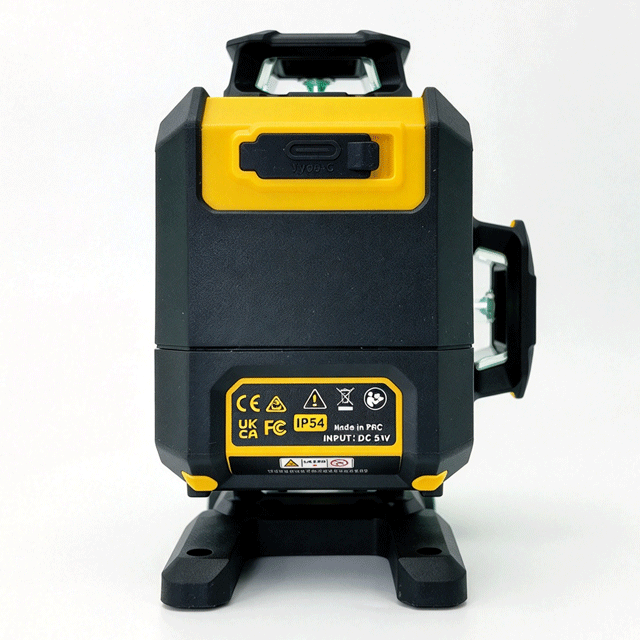

The LS-4JG features an IP54-rated housing, providing protection against dust ingress and water splashes during normal jobsite use.
The housing is designed for professional construction and renovation environments while maintaining a compact form factor for easier storage and transportation.
| Specification | LS-4JG |
|---|---|
| Product Type | 4D Self-Leveling Laser Level |
| Number of Lines | 16 Lines |
| Laser Planes | 4 × 360° |
| Laser Color | Green |
| Green Laser Wavelength | 505–530 nm |
| H/V Accuracy | ±3 mm / 10 m |
| Self-Leveling Range | 3° ±1° |
| Green Laser Working Range | Up to 30 m |
| Power Supply | Built-in Lithium Battery |
| Battery Capacity | 3600mAh |
| Runtime | Approx. 8–16 Hours Depending on Mode |
| Mounting Thread | 1/4"-20 |
| Protection Rating | IP54 |
| Operating Modes | Self-Leveling / Manual / Pulse Mode |
| Brand | Plineasy |
| Model | LS-4JG |
A conventional cross-line laser normally projects one horizontal line and one vertical line onto a limited working area.
A 4×360° laser level projects multiple complete laser planes around the room, reducing the need to repeatedly move and reposition the laser.
The LS-4JG provides:
Two-dimensional and full-room alignment references
Floor-to-ceiling layout capability
Multiple horizontal and vertical reference lines
Faster squaring and alignment
Improved efficiency on larger installation projects
Greater flexibility for professional renovation and construction work
For installers working regularly with floors, walls and ceilings, a 4D laser level can significantly simplify layout work.
The LS-4JG is designed for professional users including:
Tile installers
Interior contractors
Ceiling installers
Cabinet installers
Electricians
Plumbers
Flooring contractors
Carpenters
Renovation companies
Construction contractors
It can be used for both general alignment tasks and projects requiring multiple simultaneous laser references.
Plineasy specializes in the development and manufacturing of laser leveling tools for international customers.
For distributors, tool brands, importers and wholesalers, OEM and ODM services are available for laser level projects.
Customization options can be discussed according to your target market and order requirements, including:
Private-label branding
Logo printing
Product configuration
Battery and charging solutions
Product design development
Accessories
Manuals and market-specific requirements
If you are sourcing a 4D laser level manufacturer, 16-line laser level supplier or private-label green laser level, contact the Plineasy team with your required specifications and target market.
Request OEM / ODM Quote
Plineasy focuses on the research, development and manufacturing of professional laser measurement tools.
Our production and quality-control capabilities support OEM and ODM projects for international tool distributors and brands.
For B2B buyers, we can assist with:
Product selection
OEM / ODM development
Private-label projects
Technical configuration
Laser level accessories
Quality inspection
Packaging requirements
Wholesale supply
Contact us with your required laser configuration, target market and estimated purchasing quantity for a quotation.
The LS-4JG is a compact 4D 16-line self-leveling laser level that projects four 360° laser planes for floor, wall and ceiling alignment applications.
The LS-4JG is a 16-line laser level using four 360° laser planes to provide all-around layout coverage.
The green laser working range is approximately 30 meters under suitable indoor working conditions. Actual visibility can vary according to ambient lighting and working environment.
The horizontal and vertical accuracy is approximately ±3 mm at 10 meters.
Yes. The LS-4JG includes an automatic self-leveling system with a leveling range of approximately 3° ±1°.
Yes. When the pendulum is locked, the laser can operate in manual mode for applications requiring angled or diagonal reference lines.
Yes. Its lower 360° horizontal laser plane and vertical reference planes make it suitable for floor tile layout, alignment and squaring.
Yes. The 360° horizontal laser coverage provides reference lines for suspended ceilings, ceiling panels, lighting fixtures and other overhead installation work.
The LS-4JG uses a built-in 3600mAh rechargeable lithium battery.
Depending on the laser brightness and operating mode, runtime is approximately 8 to 16 hours.
The LS-4JG has an IP54 protection rating, providing protection against dust and water splashes. It should not be treated as a fully waterproof or submersible device.
Yes. Plineasy provides OEM and ODM laser level manufacturing services for distributors, importers, wholesalers and tool brands. Branding and product configuration can be discussed according to project requirements.
