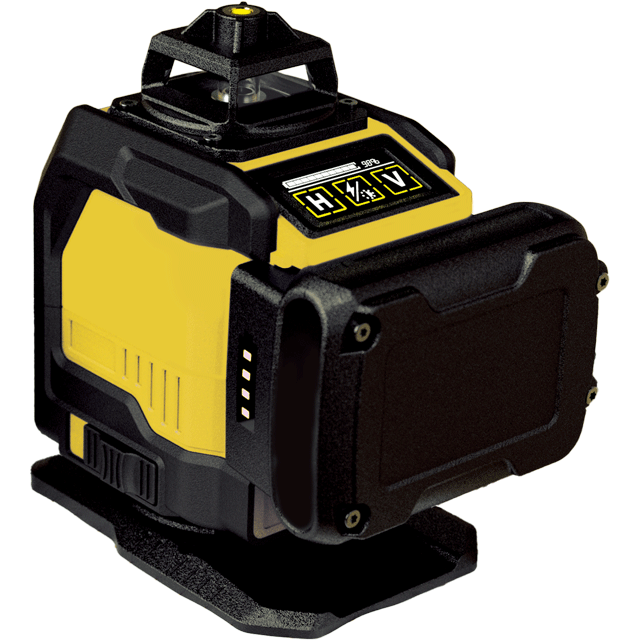

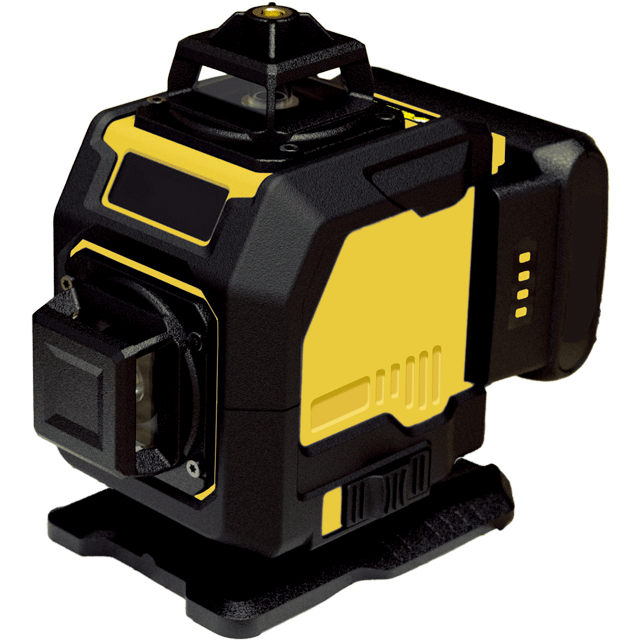

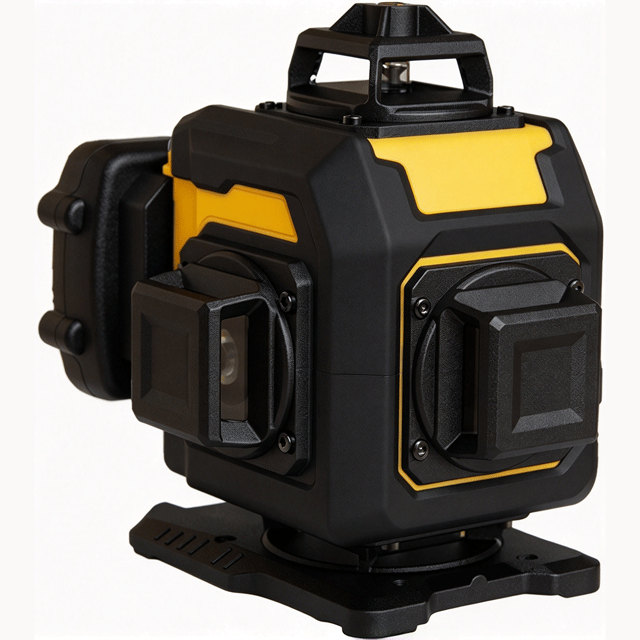

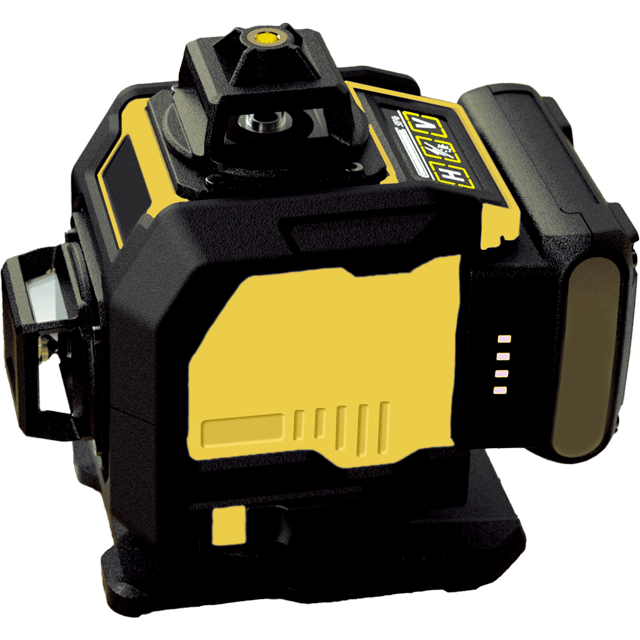

LS-4HG 4*360° Self-leveling cross line laser level
510-530nm
4°±1°
±3mm/10m
3600mAh lithium battery pack
IP54
-20° C to 40°C
30M
1/4-20''
| Quantity: | |
|---|---|
Product Description
The Plineasy LS-4HG 4×360° Self-Leveling Cross Line Laser Level is designed for professional installers who need comprehensive layout coverage, flexible power options, and convenient positioning on the jobsite.
Featuring four 360-degree laser planes, an LCD status display, Type-C charging, and a magnetic mounting bracket, the LS-4HG supports leveling and alignment tasks across walls, floors, and ceilings. Its 4000mAh lithium-ion battery, optional battery case for locally sourced 18650 cells, and receiver-compatible pulse mode offer additional flexibility for different working environments.
For European and North American tool brands, importers, and distributors, the LS-4HG provides a versatile product option for professional construction, renovation, and interior installation markets.
Four 360° laser planes: Provide full-circle laser coverage for ceiling, floor, and wall layout tasks.
LCD status display: Shows battery level, angle, pendulum status, and pulse mode.
Triple power options and Type-C charging: Supports flexible power arrangements using a 4000mAh lithium-ion battery or a compatible battery case for locally sourced 18650 cells.
Audible out-of-level alert: Sounds when the instrument exceeds its specified ±4° self-leveling range.
Manual mode: Allows laser lines to be projected at an intended angle when the pendulum is locked.
Pulse mode: Supports use with a compatible laser receiver for working distances up to 200 ft under suitable conditions.
Magnetic mounting bracket: Enables quick positioning on suitable metal surfaces.
Dual mounting threads: 1/4" and 5/8" threads support a range of compatible tripods and mounting accessories.
Repeatedly repositioning a laser level to establish reference lines on different walls, floors, and ceilings can slow down installation and increase setup work.

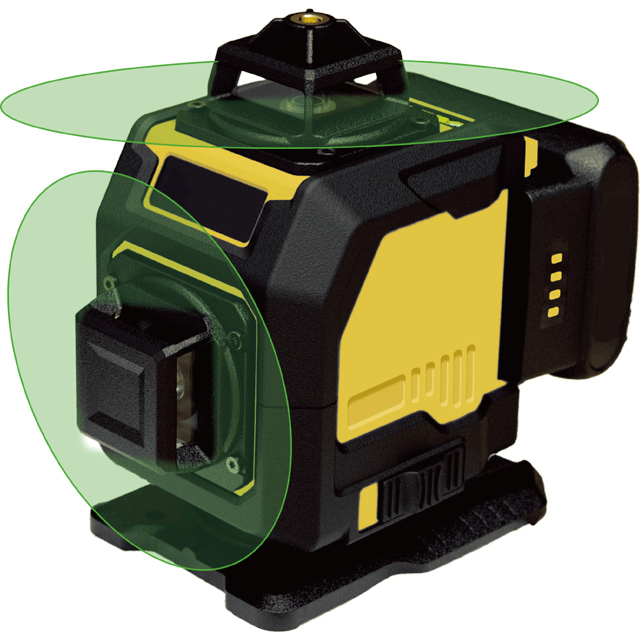

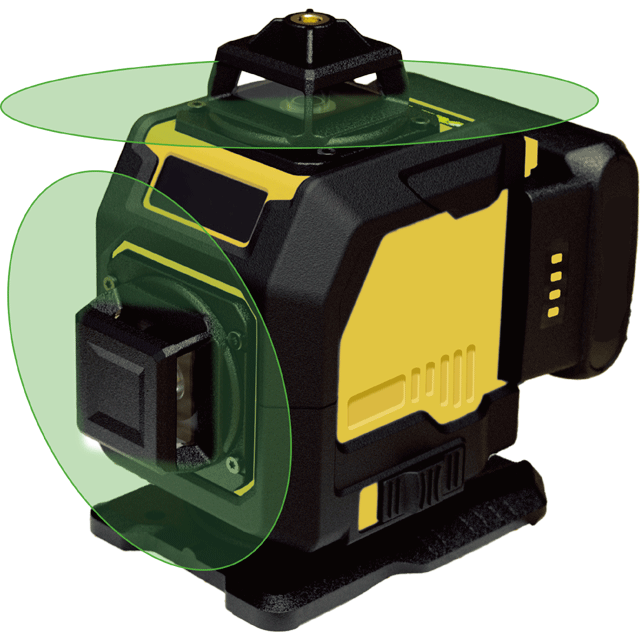

The LS-4HG projects four 360-degree laser planes, including upper and floor-level horizontal coverage and vertical reference planes. This configuration helps users establish multiple layout references from a single setup position.
For suspended ceiling installation, the upper horizontal plane helps establish ceiling reference lines. The floor-level horizontal plane supports flooring and tile layout, while the vertical planes assist with wall alignment and squaring tasks.
This comprehensive coverage can reduce unnecessary repositioning and help contractors coordinate measurements across multiple surfaces.
For tool brands, four-plane coverage is a clear selling point for customers who need a versatile laser level for professional installation and renovation work.
Unclear operating status and unnoticed instrument tilt can lead to setup errors and wasted time.
The LS-4HG features an LCD display that provides information about four important operating conditions:
Battery level: Helps users monitor remaining power and plan charging.
Angle: Provides an on-screen angle reading.
Pendulum status: Helps users identify the current pendulum operating state.
Pulse mode: Indicates when pulse mode is active.
The instrument also provides an audible alert when it exceeds the specified ±4° self-leveling range. This helps notify users that the tool needs repositioning before they rely on its laser lines as level references.
These features make the LS-4HG easier to monitor during setup and help reduce errors caused by overlooked operating conditions.
Power interruptions can disrupt installation schedules, particularly when users work across several rooms or at locations without convenient access to replacement batteries.
The LS-4HG supports multiple power arrangements. It comes with a 4000mAh lithium-ion battery and can also use a compatible battery case loaded with locally sourced 18650 cells. Its built-in Type-C charging port adds charging convenience.
This flexible design can be useful for professional users who want a rechargeable battery option while retaining an alternative power arrangement for different working environments.
For importers and distributors, the battery case option can also provide a practical selling point in markets where compatible 18650 cells are readily available.
The exact battery configuration, cell requirements, and supported operating arrangements should be confirmed against the final product specification.
Bright ambient light and longer working distances can make a laser line difficult to see clearly.
The LS-4HG features pulse mode, which supports use with a compatible laser receiver. Under suitable conditions, this configuration can extend the working distance up to 200 ft.
Receiver-assisted operation is useful when contractors need to detect the laser reference in bright environments or across larger working areas where visibility to the naked eye is limited.
The stated 200 ft range depends on receiver compatibility, environmental conditions, and the actual working setup. A compatible receiver may be required and should be confirmed when selecting the product configuration.
For professional tool brands, receiver compatibility helps position the LS-4HG for a broader range of indoor and selected outdoor layout applications.
Finding a stable mounting position can be inconvenient when working on walls, ceiling structures, or other installation surfaces.
The LS-4HG includes a powerful magnetic bracket that allows quick attachment to suitable metal surfaces. This can help users position the laser without always relying on a separate tripod.
For tripod-based applications, the tool supports both 1/4" and 5/8" mounting threads, providing flexibility across different compatible stands and mounting accessories.
These mounting options help contractors adapt the instrument to different working heights and installation conditions while reducing unnecessary setup effort.
Different construction tasks require different laser settings. The LS-4HG supports self-leveling and manual operation to accommodate these needs.
Self-leveling mode
When the instrument is within its specified self-leveling range, the system establishes level reference lines automatically. If the tool exceeds the ±4° range, the audible alert helps notify the user that repositioning is needed.
Manual mode
Locking the pendulum switches the tool to manual operation, allowing laser lines to be positioned at an intended angle for tasks such as sloped ceiling layouts and other angled installations.
Pulse mode
Pulse mode supports compatible receiver-assisted detection when greater working distance or improved signal detection is required.
Together, these modes allow the LS-4HG to support standard leveling, angled layout work, and selected extended-range applications.
The LS-4HG is designed for a variety of professional layout tasks that benefit from four 360-degree laser planes.
Suspended ceiling installation: Establish horizontal references for ceiling grids and component positioning.
Flooring and tile installation: Use floor-level laser coverage to support layout and alignment.
Cabinet and shelving installation: Maintain consistent reference heights across multiple walls.
Wall finishing and renovation: Coordinate horizontal and vertical references for installation work.
Interior fit-out projects: Reduce repeated setup when working across several surfaces.
Selected outdoor layout tasks: Use pulse mode with a compatible receiver when conditions require receiver-assisted detection.
The suitability of the instrument for a particular task depends on the required accuracy, working distance, mounting arrangement, and environmental conditions.
For European and North American tool brands, selecting a laser level supplier involves more than comparing individual product specifications. Buyers also need to consider product differentiation, customization requirements, manufacturing consistency, and technical communication.
Plineasy specializes in laser levels and related measuring tools, providing OEM/ODM cooperation opportunities for brands developing their own measuring-tool portfolios.
Product differentiation
The LS-4HG combines four 360-degree laser planes, an LCD status display, multiple power options, receiver-compatible pulse mode, and flexible mounting arrangements. These features provide clear points of differentiation for professional tool ranges.
OEM/ODM customization support
Brand owners can discuss suitable logo placement, product appearance, packaging, and configuration requirements with the Plineasy team. Available options depend on project scope and technical feasibility.
Manufacturing and quality requirements
Plineasy can discuss inspection criteria, technical documentation, and applicable market compliance requirements during project evaluation.
Product portfolio development
The LS-4HG can complement compact cross-line lasers and other multi-plane models, helping brands serve customers with different installation requirements and purchasing priorities.
For importers, distributors, and established tool brands, Plineasy offers an opportunity to discuss product specifications, customization options, and supply requirements for their target markets.
A 4×360° laser level projects four full-circle laser planes for layout tasks across walls, floors, and ceilings. Common applications include suspended ceiling installation, flooring, tile layout, cabinet alignment, and interior renovation.
The LCD shows battery level, angle, pendulum status, and pulse mode, helping users monitor the instrument's operating condition.
The LS-4HG provides an audible alert when the instrument exceeds its specified ±4° range. Users should reposition the tool within the permitted range before relying on the projected lines as level references.
The product supports a compatible battery case for locally sourced 18650 cells, in addition to its 4000mAh lithium-ion battery configuration. Confirm the required cell type and supported arrangement before use.
The stated pulse-mode range is up to 200 ft when used with a compatible laser receiver under suitable conditions. Actual performance depends on the receiver and working environment.
Yes. The product supports 1/4" and 5/8" mounting threads for compatible tripods and accessories. The magnetic bracket also allows mounting on suitable metal surfaces.
Plineasy supports OEM/ODM cooperation for laser levels and related measuring tools. Brand owners can contact the team to discuss branding, packaging, product configuration, and project requirements.
Looking for a versatile 4×360° self-leveling laser level for your professional measuring-tool product range?
Contact Plineasy to discuss the LS-4HG, technical specifications, customization possibilities, and OEM/ODM supply requirements for your target market.
