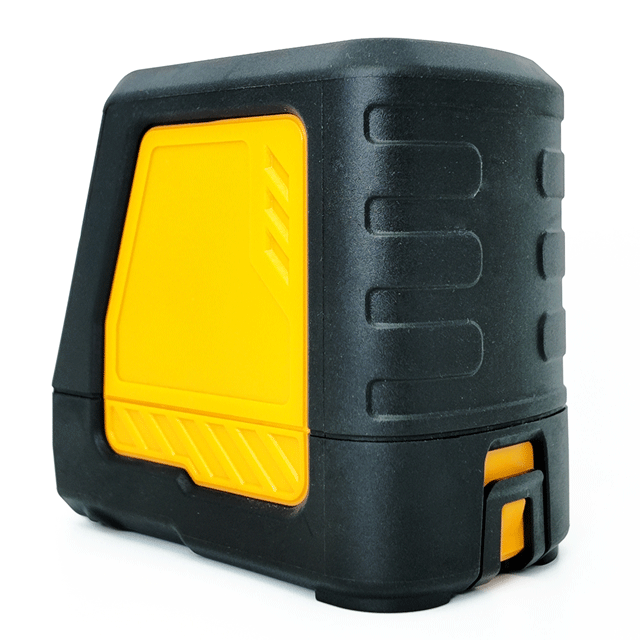

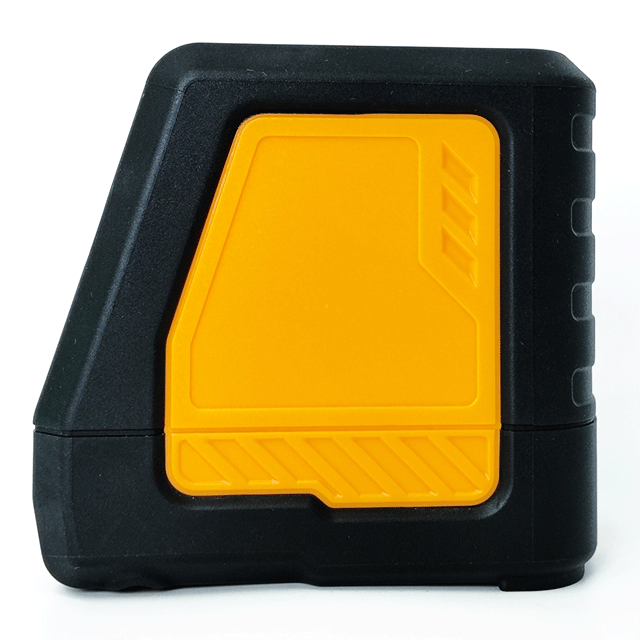

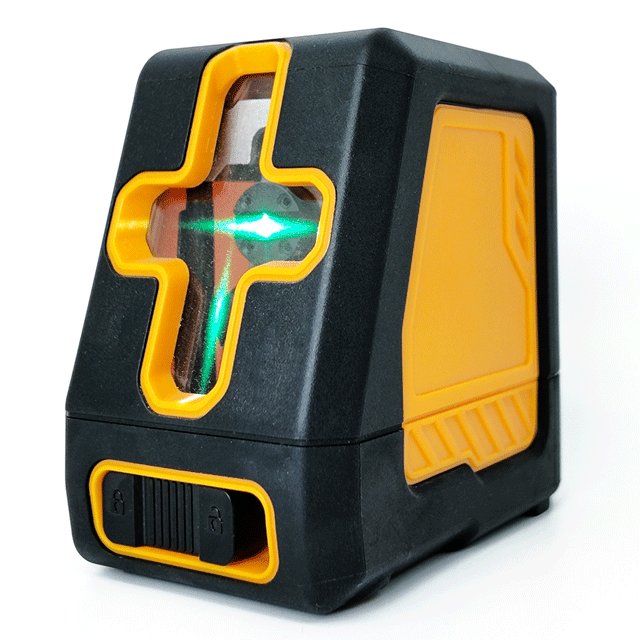

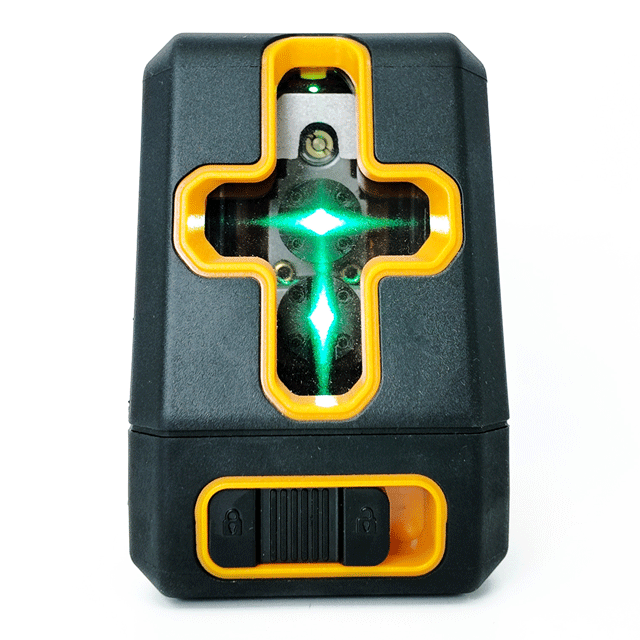

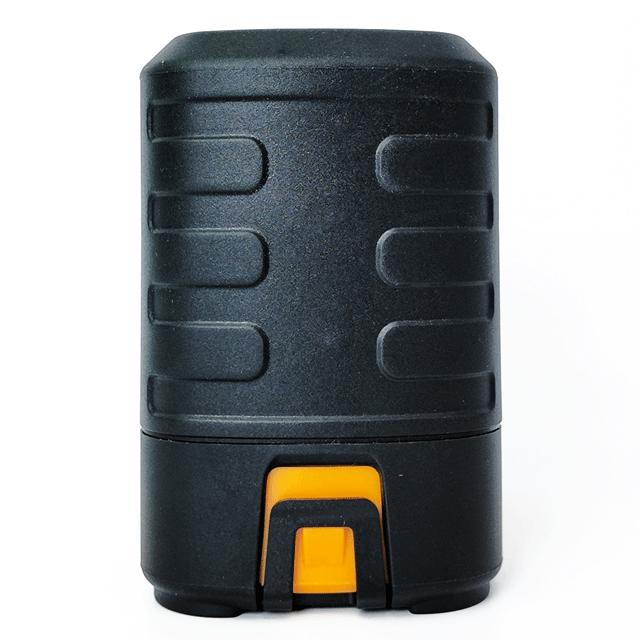

Cross Line Self Leveling Laser Level LL-T1

  • LL-T1

  • PlinEasy / OEM / ODM

  • 4°+1

  • IP54

  • 100ft/30m for Green beam

  • 8 H/first gear 12H/second gear 16H/third gear

  • 4*AA battries

Availability:
Quantity:

Product Description

Features Overview

水平仪301画板 1

Fine Positioning

This Cross Line Self Leveling Laser Level adopts the bright green laser unit, with ± 1/13 inch at 33Ft high accuracy. This Cross Line Self Leveling Laser Level is the handiest and most professional laser tool you can think of to carry out work for all trades from drop ceiling installation, lighting fixtures, photo frames aligning, wall tiling down to floor tiling, etc.


Long Working Time

Plineasy Cross Line Self Leveling Laser Level tool employed 4 AA alkaline batteries for a longer working time. The 360 laser level tool will work for 10 hours while all laser beams are on with totally new batteries.


Multiple Installation Methods

Cross Line Self Leveling Laser Level included strong magnetic bracket enables it to be attached to metal surfaces on the wall and turn the laser level around at 360°, also offers 1/4"-20 mounting threads on the bracket and the device to suit standard tripod or pole mount.


Self-Leveling & Manual Mode

Self-Leveling allows this cross line laser level to be used on any flat surface within 4° of horizontal/vertical. Once the level is within 4 degrees, internal self-leveling will take over and you’ll get a bright, high-accuracy horizontal and vertical line projected right where you need it. The laser will flash as a warning if it’s not within 4° of level. In manual mode, the pendulum is locked, it switches to manual mode to lock lines for use at any angle.


Multifunctional

Plineasy Cross Line Self Leveling Laser Level has two laser sources. Projects bright horizontal, vertical & cross 3 mode lines onto flat surfaces and levels by one-button operation. Pulse mode extends the working range up to 200Ft with a laser receiver.

Product Display

LL-T1

Laser Wave length Red beam:635nm
Green beam:505-530nm
H/V Accuracy ±2mm/10m
Self-leveling range 4°±1°
Working Range Green: 30m/ Red: 15m
Power supply 2*1.5V AA
Operating temperature -10°C to 50 °C
Mount Size 1/4-20 mounting thread
IP Rating IP54
水平仪301画板 1 拷贝 4水平仪301画板 1 拷贝 2
What's in the package


1 x Magnetic Fine-Tuning Bracket, ‎1 x Carry On Bag, 1 x User Manual, 1 x Cross Line Self Leveling Laser Level, 4 x AA Batteries

cross line laser level


Our Advantages


What Are The Advantages of T1 Cross Line Self Leveling Laser Level?


LASER BRIGHTNESS ADJUSTABLE ENERGY SAVING MODE

When the T1 Cross Line Self Leveling Laser Level instrument is working, short-press key button, the instrument enters the energy-saving mode, and the brightness is reduced to about 50% of the maximum brightness;press it again to reduce it to 25%; press again to restore the maximum brightness cyclicall.


THREE MODES OF SWITCHING LINES

This T1 Cross Line Self Leveling Laser Level, with double condenser lens, objectmodes, and three modes of horizontal or vertical or cross line laser can be selected.


SELF LEVELING AND TILTING MODE

Self-leveling within 4 degrees, and manual mode, ideal for tilting laser lines manually at any angle. You can switch it at will and measure the dead angle for you.

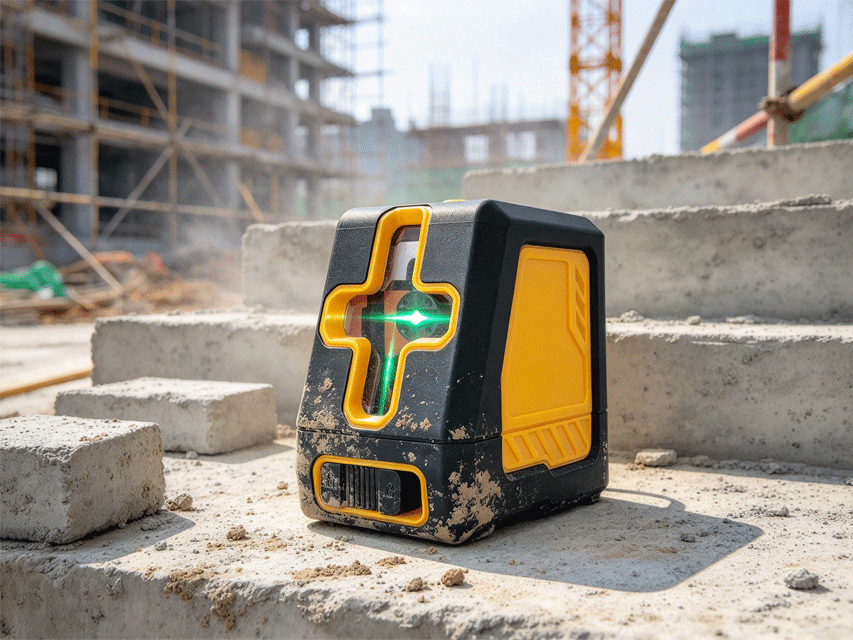

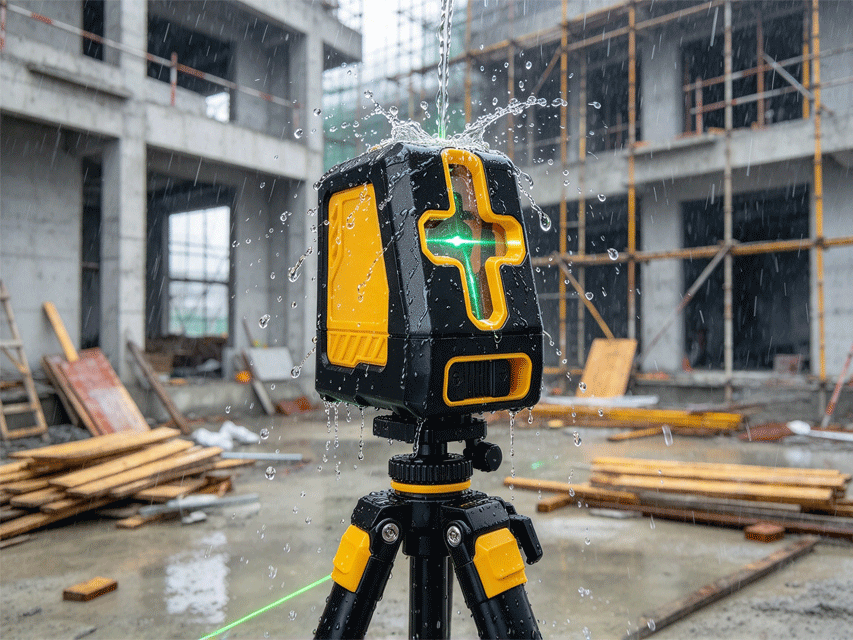

WATER/DUST PROOF

Rubber protection coating makes the level more robust and durable. IP54 water/dust resistance ensures you work well in hazardous working conditions.

水平仪301画板 1 拷贝 3

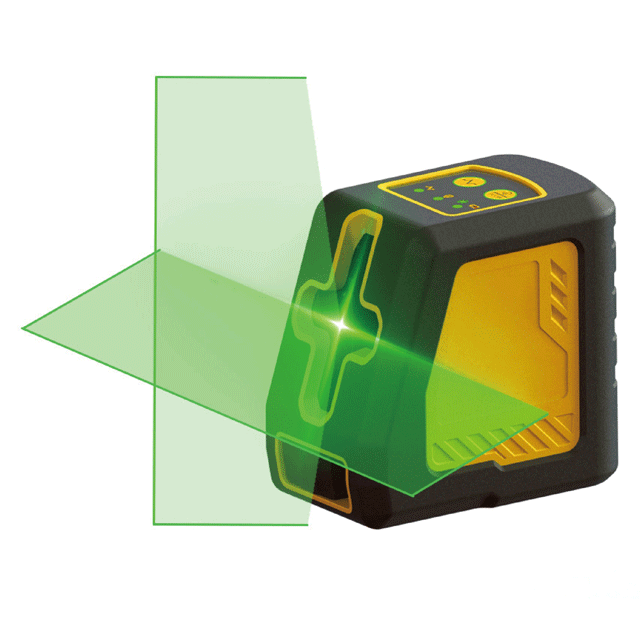

THE VERTICAL LINE PASSES THROUGH THE CEILING

T1 Cross Line Self Leveling Laser Level has double condenser lens , object modes Horizontal or vertical or cross line laser can be selected , It projects one 130° Horizontal and one 150° Vertical line for a wide array of leveling and alignment applications.

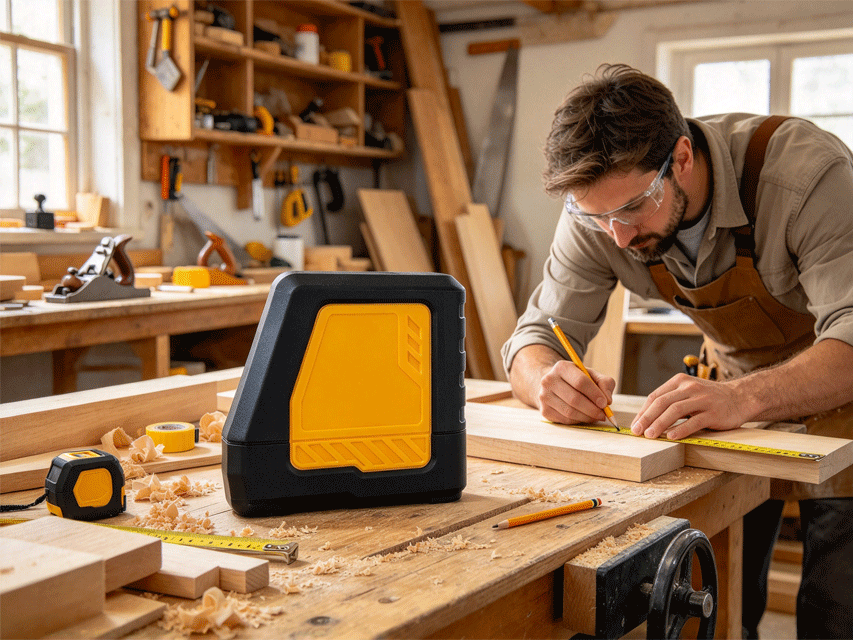

MULTIFUNCTION AND SMART

TT-T1 Cross Line Self Leveling Laser Level is the most handy and professional laser tool you can think of to carry out work for all trades from drop ceiling installation, lighting fixtures, photo frames aligning and wall tiling down to floor tiling etc.



Company Information

manuafacture and qc eqiupment

360 cross line laser level office

cross line laser level certificate


FAQ

Q1: Does this Cross Line Self Leveling Laser Level need a tripod to use it for hanging pictures?

A1: No. Laser has a magnetic holder. It can setting in a camera tripod too.

Q2: One the rechargeable model, is the battery of this Cross Line Self Leveling Laser Level removable/replaceable? Can you buy a spare battery?

A2: Yes indeed

Q3: Does anyone use this Cross Line Self Leveling Laser Level with a receiver for outside use to extend the useful range outdoors? Will any receiver work or does it need to be a certain bran

A3: Its ok

Q4: How do you turn pulse mode off? The unit Cross Line Self Leveling Laser Level is level and locked but the laser blinks every few seconds. Instructions say long press but nothing changes.

A4: It is very sensitive the level light so have to be pretty static

Q5: Hows the battery life on these Cross Line Self Leveling Laser Levels?

A5: Moderate.... depends on how long you leave the light on each time. When battery is weak, will auto-off after short time.

Q6: Silly question, how do you turn this Cross Line Self Leveling Laser Level off? No type of pressing seems to work.

A6: Move the slide switch under the laser light to the left.

Q7: How do i disable the pulse feature of the Cross Line Self Leveling Laser Level? The manual says to long press the power button but that just turns it on and off.

A7: I had the same question at first. The pulse typically indicates that the level is more than 4 degrees out of level, and can't correct. Try getting the unit closer to level. Most likely the pulse will go away. you can then use the pulse to indicate to you that you need to get the unit closer to level before turning it on. I have not had any problems once i learned this.
