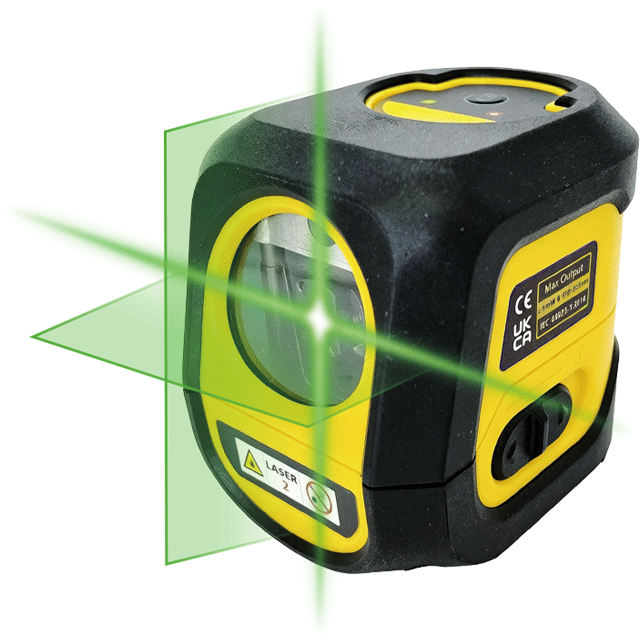

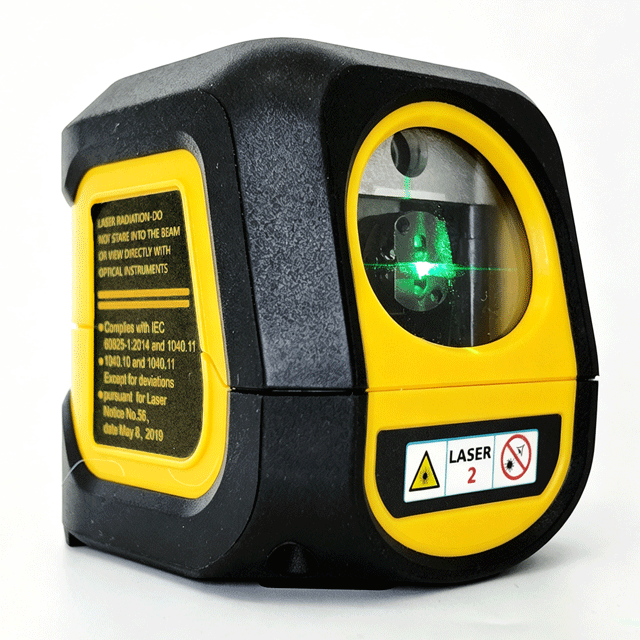

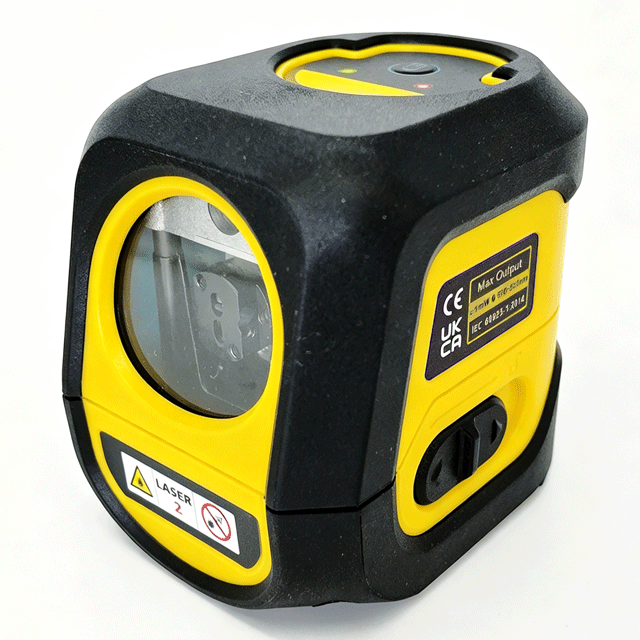

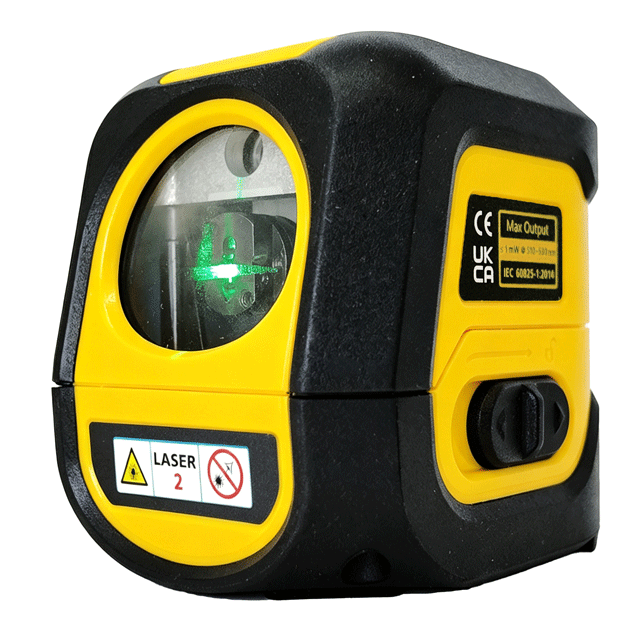

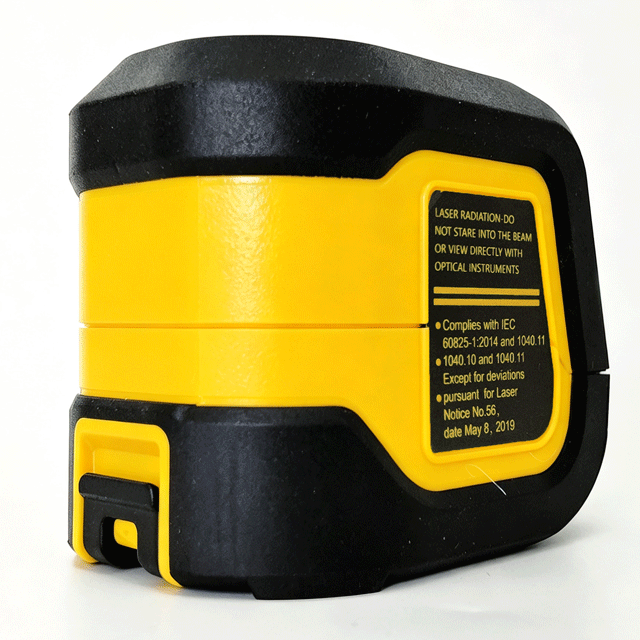

LL-T12 Cross Line Laser (1V1H): Dual Power and Fast Self-Leveling

The LL-T12 Cross Line Laser (1V1H) is designed for professionals who need reliable horizontal and vertical alignment, flexible power options, and efficient operation on the jobsite. With dual power supply, four-level brightness adjustment, 10kHz pulse mode, and fast self-leveling, it offers practical features for construction, renovation, carpentry, and interior installation.

For tool brands and distributors, the LL-T12 combines essential jobsite functionality with a durable design, making it a versatile option for professional laser level product lines.

Dual Power Supply for Reliable Jobsite Performance

Unexpected battery depletion can interrupt installation work and delay project schedules. The LL-T12 supports two power options: a 3.7V lithium-ion battery pack or two AA batteries.

• Lithium-ion battery pack: Provides at least 6 hours of operation.

• AA battery power: Provides at least 5.5 hours of operation.

• Low-battery alert: Helps users identify when the battery needs attention.

This dual-power design gives end users greater flexibility when rechargeable power is unavailable. For brands serving professional contractors and DIY users, it also creates a practical selling point around power flexibility and everyday convenience.

Four-Level Laser Brightness and 10kHz Pulse Mode

Different working environments require different laser brightness levels. The LL-T12 offers four adjustable settings at 100%, 75%, 50%, and 25%.

Users can select a suitable brightness level for their working conditions and reduce unnecessary power consumption when full brightness is not required.

The built-in 10kHz pulse mode supports operation with a compatible laser receiver. This feature can help extend the tool's usefulness in bright environments or applications requiring receiver-assisted detection, subject to the receiver's compatibility and the system's rated working range.

For distributors and private-label brands, adjustable brightness and receiver compatibility help position the LL-T12 as a flexible cross line laser for a broader range of jobsite requirements.

Fast Self-Leveling in 3 Seconds or Less

Manual alignment can take time and introduce avoidable setup errors. The LL-T12 features automatic self-leveling with a 2°–4.5° leveling range and a leveling time of 3 seconds or less.

Its magnetic damping system helps the internal pendulum settle quickly, supporting faster setup before horizontal and vertical layout work begins.

When a project requires an angled reference line, users can lock the pendulum and switch to manual slope mode. This is useful for applications such as stair layouts, angled installations, and decorative designs.

By combining automatic leveling with manual slope functionality, the LL-T12 helps users move between standard alignment tasks and specialized layout work without changing tools.

Smart Indicators for Easier Operation

Clear status feedback helps users understand the tool's operating condition while working.

The LL-T12 includes two practical indicator functions:

• Low-battery warning: The red indicator flashes at 3Hz when the battery level falls below 10%.

• Pulse-mode indicator: A dedicated light confirms when pulse mode is active.

These visual alerts help reduce uncertainty during setup and operation. For tool brands, intuitive indicators can also support a more user-friendly product experience and simplify everyday operation for both professionals and DIY users.

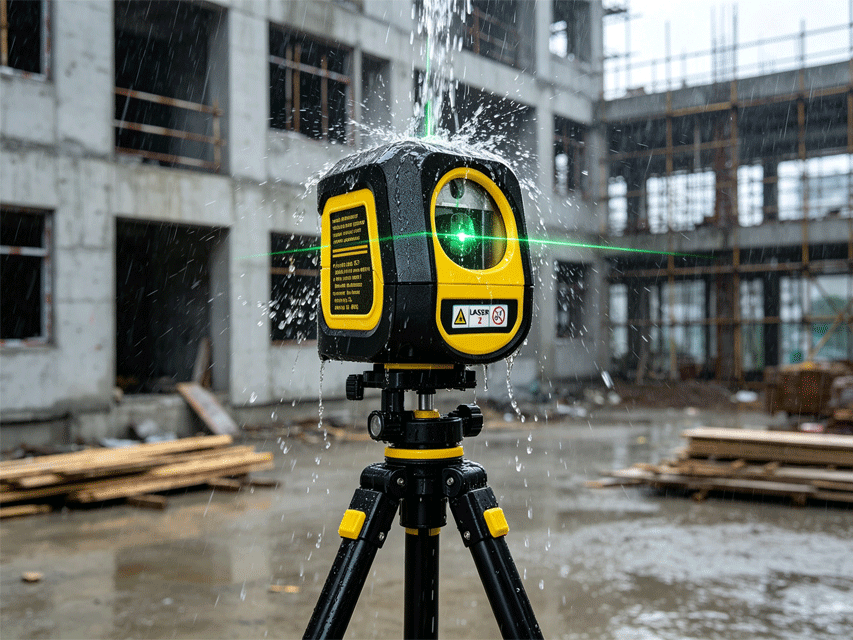

IP54 Protection and 1m Drop Resistance

Construction and renovation tools are frequently exposed to dust, splashes, and accidental drops. The LL-T12 features an IP54-rated enclosure and 1m drop resistance to support use in demanding work environments.

Its protection features are designed to help users manage common jobsite hazards and reduce concerns about everyday handling.

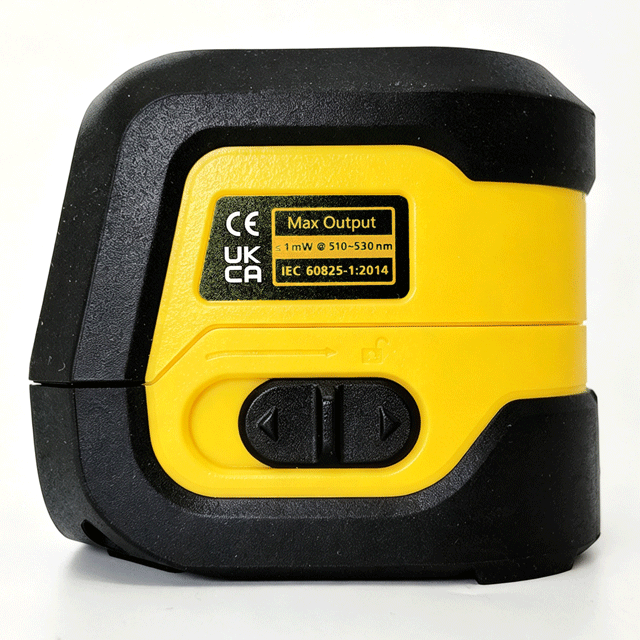

The product also uses a Class 2 laser and is specified as compliant with CE, RoHS, and REACH requirements. These features provide a useful starting point for brands evaluating product safety, material compliance, and market documentation.

Actual certification documents, test reports, and market-specific requirements should be verified before product launch.

Practical Applications for Construction and Renovation

With horizontal and vertical laser lines, dual power options, and flexible operating modes, the LL-T12 is suitable for a variety of indoor layout tasks, including:

• Wall and partition installation: Establish horizontal and vertical references for positioning.

• Cabinet and shelving installation: Align cabinets, shelves, and other fixtures.

• Tile and interior finishing: Support consistent layout during installation.

• Door and window alignment: Assist with vertical positioning and reference marking.

• Carpentry and renovation: Provide convenient cross-line references for everyday measuring and alignment tasks.

Actual performance depends on working distance, ambient lighting, installation conditions, and the accuracy specifications of the product.

Why Choose the LL-T12 for Your Laser Level Product Line?

For professional tool brands, product differentiation depends on more than technical specifications. A successful product must address real user needs while offering a clear and credible market position.

The LL-T12 Cross Line Laser (1V1H) brings together five key selling points:

• Flexible power supply: Rechargeable lithium-ion battery or AA batteries.

• Efficient setup: Self-leveling in 3 seconds or less.

• Adaptable visibility: Four brightness levels and receiver-compatible pulse mode.

• User-friendly operation: Clear low-battery and pulse-mode indicators.

• Jobsite durability: IP54 protection and 1m drop resistance.

These features make the LL-T12 a practical candidate for brands and distributors seeking a versatile cross line laser for construction, renovation, and general installation markets.

For OEM and private-label opportunities, contact Plineasy to discuss product specifications, available configurations, branding requirements, and supporting compliance documentation.
